Welcome Activators!

What's New? Highlights:
2024/02/28 - Preview: SOTACAT Hardware module for Elecraft KX radios
2023/11/05 - BETA V1.2.0-65 available, see Changelog
2023/10/17 - CWSL_DIGI v0.88+ adds support to SOTAmat and vice-versa
2023/09/05 - New Statistics page added to web site
2023/07/17 - Partial Support for new Bullitt Satellite Messenger
2023/07/10 - SotaPostAlert (2-way) supports "now" and "+<hours>" options
2023/05/29 - SOTAmatSkimmer now supports SparkSDR and WSJT-X
2023/04/23 - New: Run a home SOTAmatSkimmer with Beta WSJT-X plugin
2023/04/09 - New: Getting started video based on latest V1.1
2023/02/22 - V1.1: Apple App Store, Google Play: Offline Peak/Park Db, Login...

See Changelog / release-notes page for details.

URGENT ISSUE:

Last updated 3/26/2024

The POTA organization has made significant changes to the POTA database (Program Prefixes) over the last month. These POTA changes can break your SOTAMAT offline cellphone configuration for both POTA and SOTA users. Your POTA configuration might need to be rebuilt from scratch.

The POTA organization announced on 3/26/2024 that their changes are now complete. You need to fix your SOTAMAT configuration one last time and things should get back to normal.

Steps all users should perform one-time after 3/26/2024:

  • remove all POTA locations from your SOTAMAT configuration on this web site (here),
  • add back any POTA locations back to your SOTAMAT configuration on this web site (here), and note that the POTA organization has renamed many locations.
  • completely delete the SOTAMAT app from your cell phone (to delete the un-patchable POTA offline databases)
  • re-install the SOTAMAT app on your cell phone,
  • log into the SOTAMAT app with your callsign and password
  • reload your configuration into the SOTAMAT app
  • (optionally) reload the Peak/Park data (also on the Setup tab) into your mobile phone app.

If you only self-spot using SMS, eMail, or Garmin (known as 2-way commands) and you NEVER intend to use the SOTAMAT app on your mobile phone, then these issues do not apply to you and you can operate normally. The issue only applies to people using 1-way spotting via HF in the SOTAMAT mobile app.

Details:

POTA has made many Program Prefix changes over many weeks. The data migration is now complete.

For example, Canada used to have a Program Prefix of “VE” as in “VE-0005” for Banff National Park. Canada now has a Program Prefix of “CA” so Banff is now “CA-0005”, while the “VE” prefix now represents Venezuela. Your SOTAMAT phone configuration might reference a “VE” park “VE-0005” which now has two interpretations: Banff National Park in Canada, or Yurubi National Park in Venezuela depending on the time the configuration was loaded. The USA used to have a Program Prefix of “K-” and now uses “US-“.

SOTAMAT normally handles SOTA and POTA database changes daily and invisibly. Even though your off-the-grid phone has a SOTAMAT configuration which may have been pulled a long time ago, it normally works. SOTAMAT does this by tracking the time of every database change from the SOTA and POTA official databases, and the time when you pulled your configuration onto your phone. Normally the system can just ignore database records that are newer than the timestamp of when your phone grabbed your configuration.

However, since the POTA Program Prefix for countries, Locations, and parks have changed, and since these same prefixes are now swapped with other countries / programs, simply ignoring newer records in the database is insufficient. There are multiple concepts for all the “VE” locations and parks and the single SOTMAT timestamp can’t disambiguate the tables. Effectively POTA is “rewriting history” (changing what was previously a database primary key) from a code point of view. This not only breaks the mapping between your phone configuration and the server configuration for POTA, but can also break SOTA mappings since both programs are combined into a unified callsign suffix mapping.

Android Issue

Certain (infrequent) Android users report an issue with the new login & configuration loading feature. If you get an error “configuration invalid”, use the manual “configuration blob” approach.

Introduction

SOTA (Summits-On-The-Air) and POTA (Parks-On-The-Air) are awesome awards schemes that give points for hiking up mountains or visiting parks and making amateur radio (ham radio) contacts. They combine exercise, vistas, emergency drill practice, self-competition, and social benefits, Learn more from Outside Magazine’s SOTA article and the official SOTA organization, and from the official POTA organization.

Have you tried activating a SOTA peak or POTA park but had trouble self-spotting? Do you feel ‘dirty’ self-spotting an amateur radio activity with non-amateur cell-phone or satellite methods? Do you wish you had a simple way to find Summit-to-Summit (S2S) and Park-to-Park (P2P) opportunities in the moment? Do you wish you could send a message to a friend, but cell and APRS services were spotty in the mountains?

What SOTAMĀT does:

SOTAmāt (pronounced “sota mate”, like “automate”) automates a variety of SOTA and POTA activities, including:

  1. One-way commands sent via HF radio (works without internet, cellular, or satellite):
    • Self-spotting (SOTA and POTA)
    • Self-alerting especially for CW operators wishing to “tickle” RBNhole (SOTA)
    • Select and send predefined SMS or eMail messages to predefined recipients
  2. Two-way commands sent/received via SMS, eMail, or Garmin inReach:
    • Find Summit-to-Summit (SOTA S2S) or Park-to-Park (POTA P2P) opportunities with recent spots reports
    • Post a spot (SOTA and POTA)
    • Post an alert especially for CW operators wishing to ‘tickle’ RBNhole (SOTA)
    • Get an upcoming alerts report (SOTA)
    • Get information on Peaks, Parks, and Callsigns (SOTA and POTA)
    • Get Weather forecasts specific to SOTA peaks and POTA parks
    • …and more…

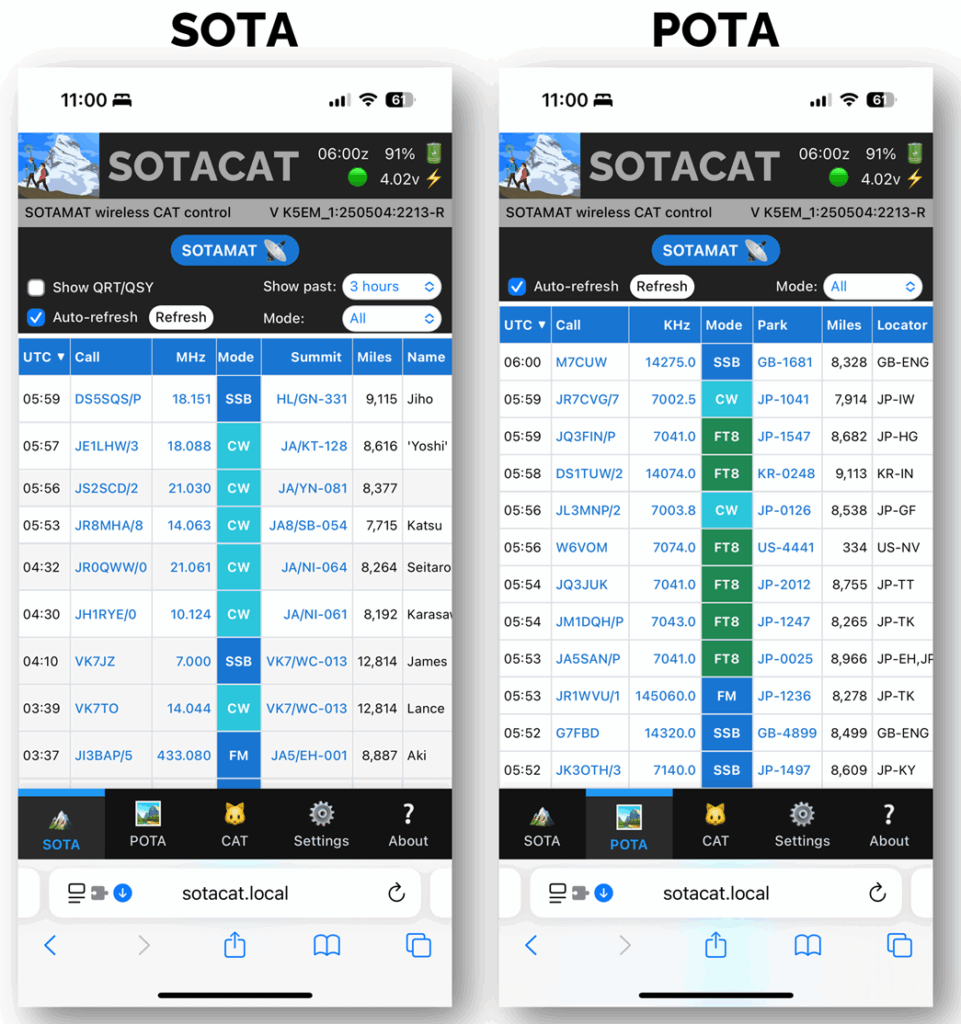

  3. With the optional SOTACAT hardware module:
    • Control your Elecraft KX2 or KX3 radio via WiFi from a web page on your phone
    • “Click-to-Pounce” on recent SOTA/POTA spots: your radio auto-tunes
    • Self-spot with SOTAMAT wirelessly: teaches your Elecraft KX radio to directly synthesize FT8 SOTAMAT commands without using audio (no cables, no microphone, no speakers).

Two-Minute Video Intro

Self-Spotting and Alerting via HF (no computer needed)

The SOTAmāt server listens to PSKreporter for reception reports of your (preregistered) callsign with a special SOTAmāt suffix (specific to your personal SOTAmāt configuration). This callsign suffix encodes a command for SOTAmāt to execute (such as a self-spot for a particular summit-ID or park-ID, or to send an eMail message).

SOTAmāt workflow, left-to-right

In the field (without cell service) you use the SOTAmāt mobile application (iOS or Android) to compute a callsign suffix based on your preregistered personal configuration and the command you want to execute (ex. a self-spot of W6/NC-001 14.227 MHz SSB). You then transmit a message using any method that will report your callsign + suffix to PSKreporter. For example, you can send your message using FT8, FT4, PSK31, RTTY, or any method that preserves the callsign and suffix when reporting to PSKreporter. The SOTAmāt app has FT8 audio generation built-in and is by far the easiest and most reliable method.

For example, if my account were configured correctly, this FT8 message:

STM AB6D/14CL

Might self-spot me as follows (on SOTA Watch):

AB6D on W6/NC-423 14.277 SSB [SOTAmat.com by FT8] Freq +/- if QRM. (via KF7PRQ via AB6D)

And the hardware is quite simple, especially when operating QRP (low power):

…in fact you don’t even need a cable from the mobile phone to the radio. Unless there are strong winds, you can just have the mobile phone speaker play the FT8 sounds directly into your radio’s microphone (see the FAQ article on how to improve the signal-to-noise ratio when cable-free to make sure you don’t transmit background noise or create band splatter that interferes with other operators).

Cable-Free and computer-free acoustic coupling

Unfortunately not all monitoring software preserves the suffix on the way to PSKreporter, such as CW (the most popular RBN CW ‘skimmer’ monitoring software doesn’t know how to discriminate between callsign suffixes-as-locators vs. suffixes-as-indicators). I find the most reliable (and known to work) approach is to use FT8 (there just aren’t many PSK or RTTY monitoring stations left these days). I normally transmit my FT8 message 3 or 4 times, and the SOTAmāt mobile app helps you do this automatically.

[Technical Note: normal FT8 CQ messages do not allow a callsign suffix (not enough ‘C28’ bits). SOTAmāt uses FT8’s 13-character “free text” mode to encode both callsign + suffix, but only the SparkSDR monitoring software reliably extracts callsigns + suffixes from such messages. That’s OK since FT8 travels 1000’s of miles using QRP. I find that I’m able to reach at least one SparkSDR based monitoring station reliably (normally 3 or 4 will hear me) if I transmit my FT8 message 3 or 4 times. Your experience may differ. In really tough conditions (sunspot cycle blackouts?), you might need to send your FT8 message on different bands (start with 20M and always use SSB-USB). I’ve always gotten through if I’m patient and re-transmit the SOTAmāt message a few times.

Want to help the SOTA and POTA communities? Run your own monitoring skimmer that is compatible with SOTAmat!

Sending SMS and eMail messages via HF

Certain callsign suffixes instruct SOTAmāt to send predefined SMS text messages on your behalf. The process works the same way self-spots work: you first pre-configure a set of SMS messages on the web site and load them into the mobile app for offline use. In the field, use the mobile app to select a predefined message and the app will compute the corresponding callsign + suffix. Send the message using any means that will arrive in PSKreporter with the suffix unchanged (such as with an FT8 mobile app). In about 5 minutes or less your SMS message should be sent.

NOTE: SOTAmāt should not be used for life safety situations. The service is not designed for highly reliable message delivery. It does not use professionally designed systems or architectures. It is not a replacement for satellite communicator devices. Use of the service is at your own risk! The system is not guaranteed or warranted to perform. It is built and run as a hobby by its creator. That said, it is better than nothing at getting a message out!

2-Way Services (via SMS, eMail, or Gamin inReach)

In the cases where you do have cell service or a satellite communicator (such as a Garmin inReach), you can send a specially formatted SMS message to +1-601-SOTA-MAT (+1-601-768-2628) or eMail to<CALLSIGN>.<PIN>@GO.SOTAMAT.COM in order to perform a number of commands.

See the full documentation on 2-way services, as there are many commands not shown here.

Here are some examples of 2-way communication with the +1-601-SOTA-MAT (+1-601-768-2628) service:

The “long” format, intended for cell phones over SMS
The “short” format, intended for satellite communicators

NOTE: the SMS service costs me money to operate, and only operates in certain countries. Email has the same functionality as SMS and costs me nothing (and works in all countries). For now I’m happy to pay the SMS fees for the benefit of the community. It is OK to send a few SMS test messages when you are learning how to use the service, but after you understand it please only use the service for real SOTA/POTA work (don’t waste it!), or use eMail instead.

See the full documentation on 2-way services, which has a lot more detail and a full list of commands.

Optional SOTACAT Hardware Module

SOTACAT is a small hardware module that plugs into an Elecraft KX2 or KX3 radio’s CAT port (Computer Aided Transceiver port, also known as a “serial port” or an “accessory port” or “ACC port”) and provides WiFi control of the radio from your mobile device. Read more on the SOTACAT page.

Get started

If you are new visit the Getting Started page with step by step instructions. If you get stuck, I’m here to help.

    73 DE AB6D
